TURBO-HEAD LX-1060
UVA air-driven grinding spindle
Operating manual

WORKING WITH TURBO-HEAD

Turbo-Head is a precision tool. Care in handling is essential! Avoid shocks and blows. Even ones that may seem quite slight can seriously damage the bearings. Before starting a new spindle for the first time, let the oil mist lubricator run for at least 10 minutes. If new, or colder than 55°F (12°C), the spindle should be warmed up at 60,000 rpm for 10 minutes. The shut-off valve 5, Fig. 8A, should never be closed while the spindle is running: wait until it has stopped. Never let Turbo-Head stand still for more than 15 minutes without shutting valve 5.

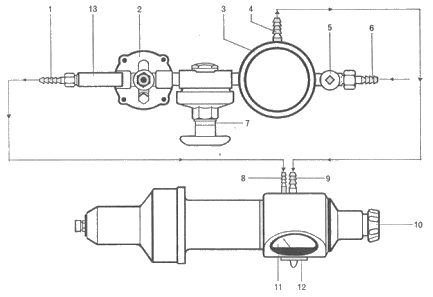

Fig. 7. Connection diagram
1-Oil mist outlet. 2-Norgren "Micro Fog" oil mist lubricator. 3-Norgren air cleaner. 4-Air outlet. 5-Shut-off valve. 6-Main air supply inlet. 7-Air pressure regulator. 8-Oil misl inlet. 9-Air inlet. 10-Speed regulating knob. 11-Speed indicator. 12-Operating switch. 13-Pressure gauge.

CAUTION!

A table of max. safe working speeds is given on page 10. Do not exceed them—quills driven at speeds above these can become a menace to human life. Take pains to keep quills, collet chucks and the tapers of spindles clean and undamaged. Work only with the special spanners supplied with the spindle.
