UVA air-driven grinding spindle
Operating manual
MAX. SAFE SPEEDS
for quills and grinding wheels on centres of light metal
| GRINDING WHEEL | QUILL | |||||||
| Diameter | Length | T6/32 | TH6/40 | TH6/49 | T9/40 | T9/49 | ||
| mm | in. | mm | in. | |||||
| 8 | (5/16) | 10 | (25/64) | 100,000 | 93,000 | 73,000 | - | - |
| 10 | (25/64) | '' | '' | 93,000 | 87,000 | 78,000 | 77,000 | 63,000 |
| 12 | (15/32) | '' | '' | 87,000 | 81,000 | 64,000 | 71,000 | 60,000 |
CAUTION
Certain of these RPM’s will produce with the wheel diameters specified peripheral speeds exceeding 6500 fpm (33 m/sec). Make sure the wheel you use was designed for this.

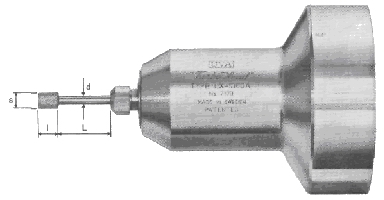

MAX. SAFE SPEEDS for mounted points with shanks of steel
For a point length (l) of 10 mm (25/64 in.)
EXAMPLE:
Assuming d = 1/8 in. (3 mm), s = 1/4 in. (6 mm), L = 3/4 in. (19 mm). Max. safe speed is then 80,000 rpm. See curve A.
