TURBO-HEAD LX-1060
UVA air-driven grinding spindle
Operating manual

MOUNTING ON MACHINE





Turbo-Head LX-1060, Style A, is designed for mounting in a holder on the machine. To facilitate this, the instrument housing is removable from the spindle by slackening the screw 21 on the back of the housing, see Fig. 2. After separation, remove the protective rubber sheeting between housing and spindle, reinsert the spindle in the holder and refit the housing immediately. Work carefully to prevent the intrusion of dust or dirt.

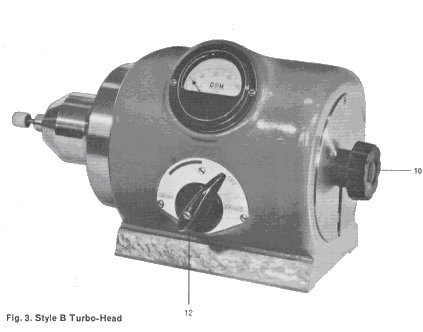

Turbo-Head LX-1060, style B, comes in a holder designed for attachment to the machine table, or to a distance piece, if required. The centre height of the spindle is adjustable within ± .02 in. (0.5 mm). Adjustment is accomplished by removing plate 18, see Fig. 4, slackening the four screws 19 and positioning the spindle for the desired centre height. Finally, tighten up screws 19 and refit plate 18.
